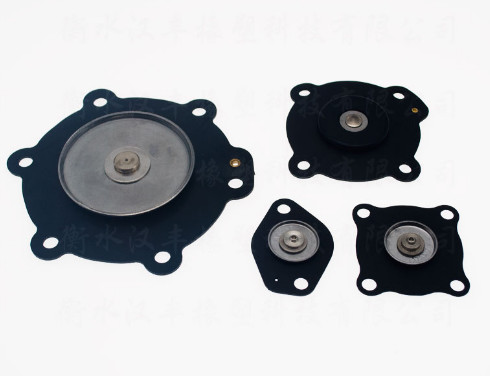

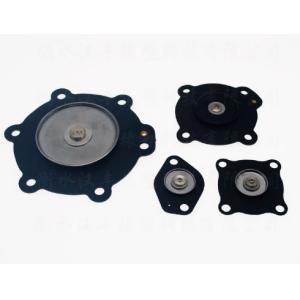

DB114 DB114/C Diaphragm For Mecair Pulse Valve VNP214 VNP314 VNP414
Inroduction:
DB114 ( DB114/C ) Diaphragm ( Membrane ) for Mecair pulse valve
VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614,
VNP714, VEM714; NBR material is standard, working temperature range
is -5 to +80 ℃; material is optional, for high temperature, working
temperature range is -10 to +120 ℃. Pulse valves are operated by
integral solenoid pilot operator. When the valve is energised, the
trapped air above pulse valve diaphgram is quickly exhausted
causing fast opening of main diaphragm valve. When the pilot
operated valve is de - energised , air escapes through bleed hole
of main pulse valve to balance the diaphragm pressure and instantly
closes the valve.
Model:
HF-DN25,HF-Z-25,HF-DN40,HF-M40,HF-M75,HF-DB116,HF-DB18M,HF-Y-102,HF-DN76,HF-DN76S,HF-DN62,HF-DN62Y,HF-20A,HF-DN25,HF-DN40,HF-DN20,HF-DN25,HF-3half
inch,HF-DB-16,HF-DN20,HF-small,HF-DN50,HF-40,HF-1.5inch,HF-D-15M,HF-028
Valve Diaphragms Features:
Fabrication technics of textile makes the product tear resistance
stronger
High quality raw materials ensure the excellent performance of the
material itself
| Product Materials | NBR,NR |
| Operating Temperature | -20℃~80℃ |
| Service Life | ≥1000000 times |
| Usage Scenario | Bag filter devices /precipitator equipment |
Skills requirement:
Since the electromagnetic pulse valve diaphragm is a flexible
mechanism that needs to be opened and closed frequently to control
air circulation, it requires not only good flexibility, but also
the highest possible sealing performance, so the material of the
pulse valve diaphragm is It is directly related to the service life
and use effect of the pulse valve diaphragm. In other words, the
quality of the pulse valve diaphragm directly affects the working
stability of the pulse bag filter dust cleaning system, and is also
directly related to the use cost of the dust removal equipment.
Generally All pulse valve diaphragms have a promise of service life
or the number of actions, and the pulse valve diaphragm used can
directly reduce the use cost of dust removal equipment.
Application:
Referred to the dust collector, it applies to waste gas dust
filtering of Cement plant, Steel mill, Power station, Electrolytic
aluminium factory, Incineration plant, crushing mixing conveying of
Chemical plant, crushing mixing sieving grinding of
Pharmaceutical plant, raw material mixing packing of Paper mill,
bagging mixing of Dyeing mill, crushing gagging conveying and
mixing of Fertilizer plant, crushing plasticzation conveying of
Kilns, sawing polishing filing of Log mill, etc.
